Pocket Watch Case Parts
Part #
Description
Price

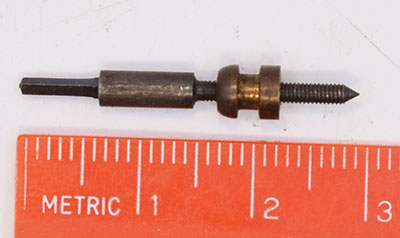

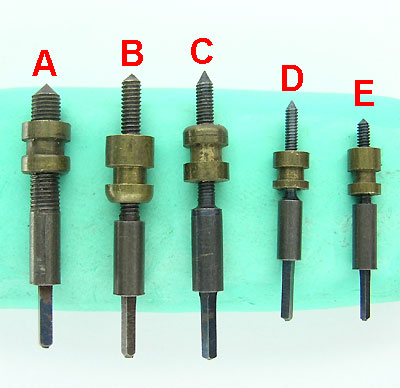

Case001

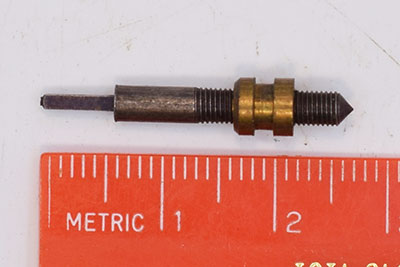

New-old-stock adjustable male and female stems. These are stems that you would use on a case that has a set screw in the pendant. The threaded part can be cut to fit and the brass collar placed at the correct location along the threaded section to engage the pendant set screw. These can also sometimes be used on cases with dust cap pendants.

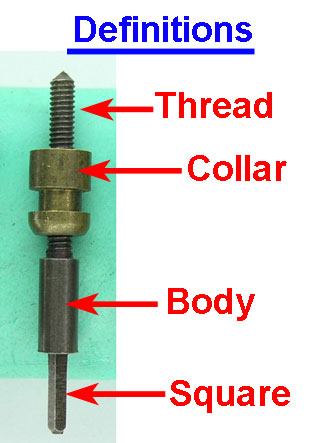

Please specify letter when ordering according to the following measurements.

A: Thread diameter = 3.15mm,
collar diameter = 5.25mm, body diameter = 3.25mm, body length = 7.8mm, square width = 1.32mm, Price = $10.00

B: Thread diameter = 2.13mm,
collar diameter = 5.62mm, body diameter = 3.25mm, body length = 7.7mm, square width = 1.08mm, Price = $10.00

C: Thread diameter = 1.93mm,
collar diameter = 4.75mm, body diameter = 3.25mm, body length = 9.0mm, square width = 1.16mm, Price = $10.00

D: Thread diameter = 1.36mm,
collar diameter = 3.85mm, body diameter = 2.55mm, body length = 6.4mm, square width = 0.98mm, Price = $7.00

E: Thread diameter = 1.40mm,
collar diameter = 3.50mm, body diameter = 2.55mm, body length = 6.8mm, square width = 0.78mm, Price = $7.00

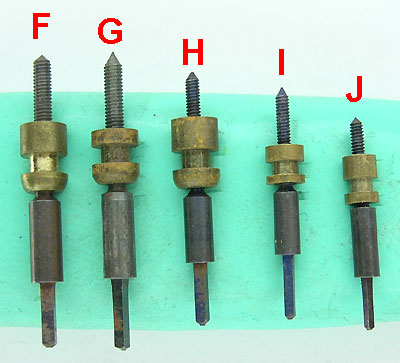

F: Thread diameter = 1.85mm,
collar diameter = 4.85mm, body diameter = 3.25mm, body length = 8.4mm, square width = 1.27mm, Price = $10.00

G: Thread diameter = 1.85mm,
collar diameter = 4.75mm, body diameter = 3.25mm, body length = 8.5mm, square width = 1.15mm, Price = $10.00

H: Thread diameter = 1.45mm,
collar diameter = 4.75mm, body diameter = 2.80mm, body length = 6.9mm, square width = 1.18mm, Price = $10.00

I: Thread diameter = 1.40mm,
collar diameter = 3.90mm, body diameter = 2.55mm, body length = 6.3mm, square width = 1.0mm, Price = $7.00

J: Thread diameter = 1.40mm,
collar diameter = 3.50mm, body diameter = 2.55mm, body length = 6.9mm, square width = 0.75mm, Price = $7.00

K: Female stem, thread diameter = 2.20mm, collar diameter = 5.60mm, body diameter = 3.2mm, body length = 10.5mm, square width = 1.75mm, Price = Out of stock

L: Female stem, Thread diameter = 1.40mm, collar diameter = 3.50mm, body diameter = 2.6mm, body length = 6.9mm, square width = 1.0mm, Price = $7.00

Note that sizes may vary by a few hundredths of a mm.

See individual descrption for item prices.

Discounts available on orders of 5 or more pieces.

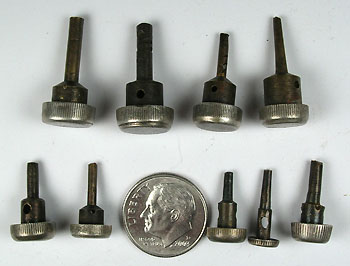

Case003

Nickel or silver keywind case pushers. I have many to choose from. The photo shows some representative examples. All are used but still in very good condition. Send inside depth and diameter measurements of your case's pendant and I will try to match a pusher to your requirements. (Or send your old pusher that needs to be replaced.)

 $25.00 each
Case004

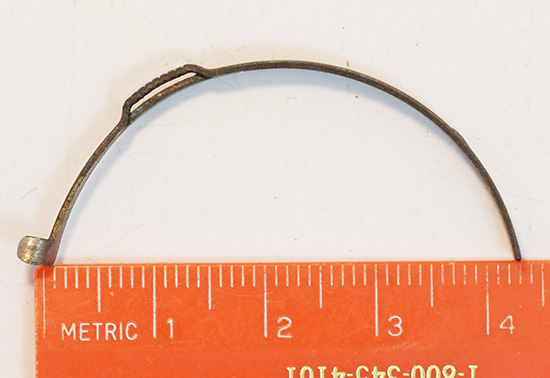

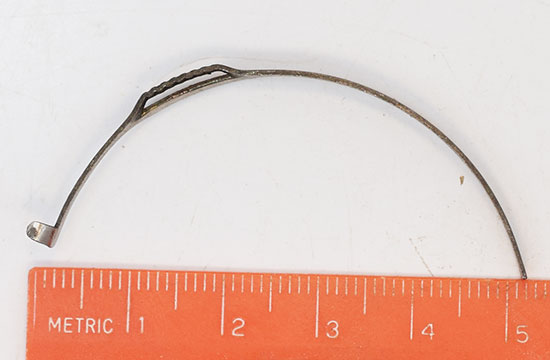

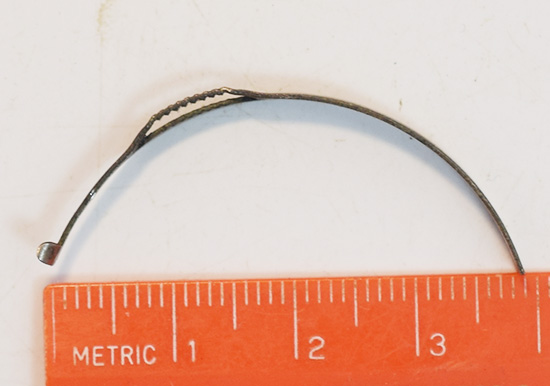

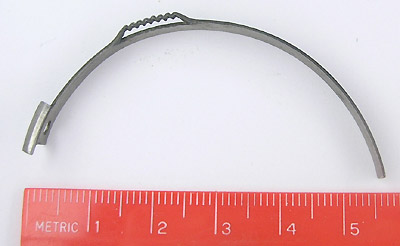

Hunting case lift spring. Many to choose from. Send me your broken spring I will try to match a spring to fit.



 $20.00 each
Case005

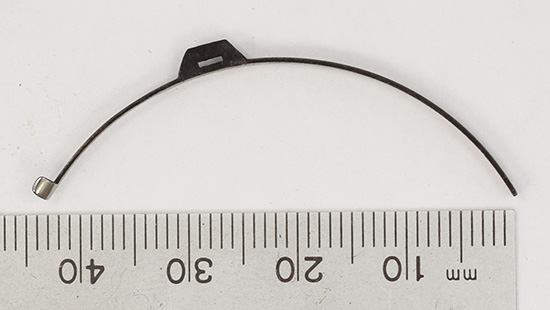

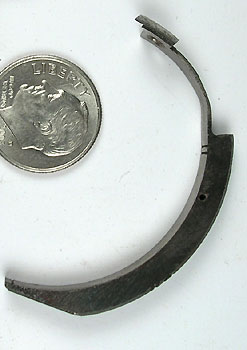

Hunting case latch spring. Many to choose from. Send me your broken spring I will try to match a spring to fit.

 $20.00 each
Case006

Yellow or white pocket watch hinge pin. New-old-stock.

Specify yellow or white.

$1.50 each

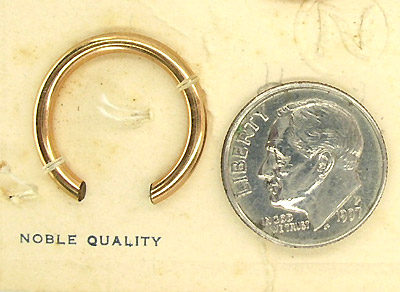

Case038 New-old-stock Noble 16-size pocket watch bows. No indication of metal content, but I would guess they are gold filled. (5 available) $10.00 per bow
Case076 New-old-stock round yellow bow. Scale shown is millimeters. (1 available) $7.00 per bow

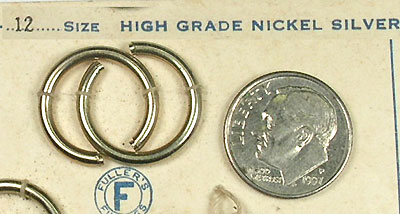

Case014 New-old-stock Fuller's Findings 'High Grade Nickel Silver' 12-size pocket watch bow. Outside diameter is 17.5mm. (8 available) $6.00 per bow

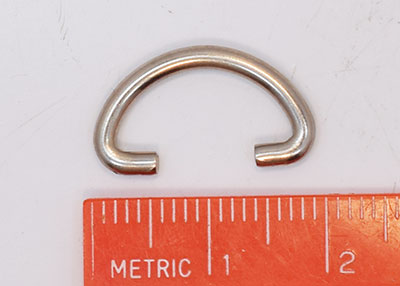

Case090 New-old-stock round white bow. Scale shown is millimeters. (7 available) $6.00 per bow

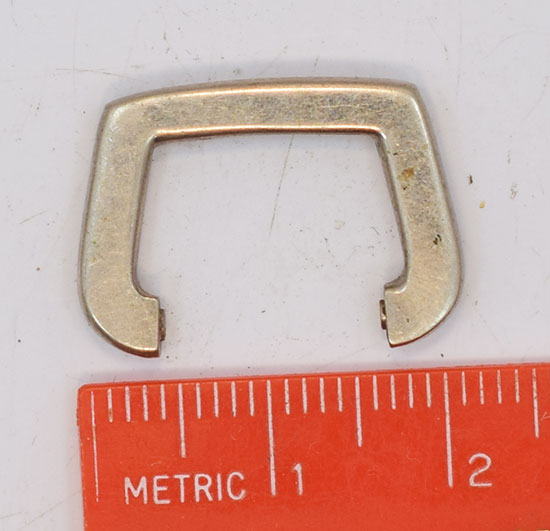

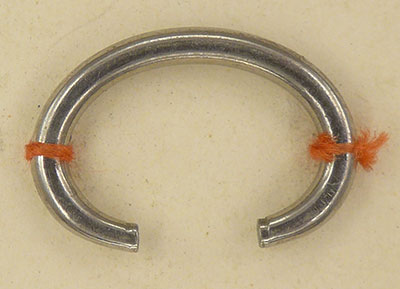

Case072 New-old-stock oval white bow. Scale shown is millimeters. (1 available) $6.00 per bow

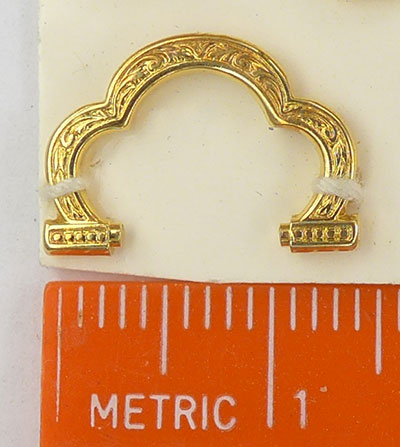

Case074 New-old-stock fancy oval yellow bow. Scale shown is millimeters. (1 available) $8.00 per bow

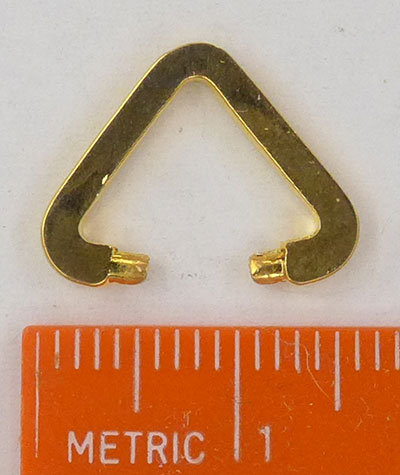

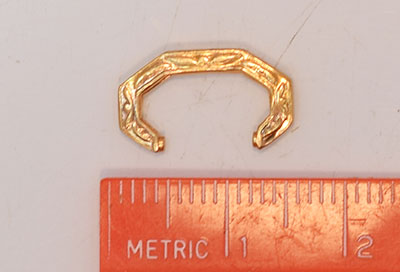

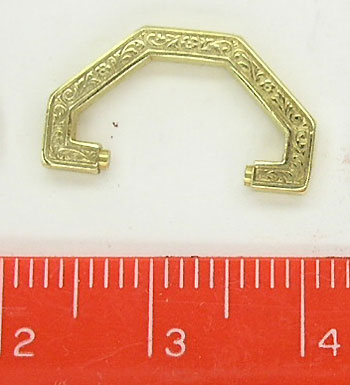

Case081 New-old-stock fancy yellow bow. Scale shown is millimeters. (3 available) $7.00 per bow

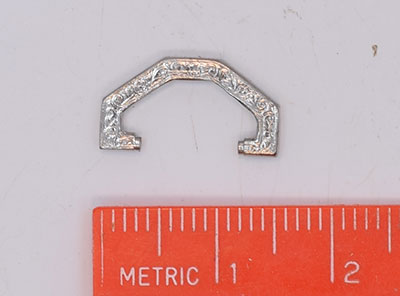

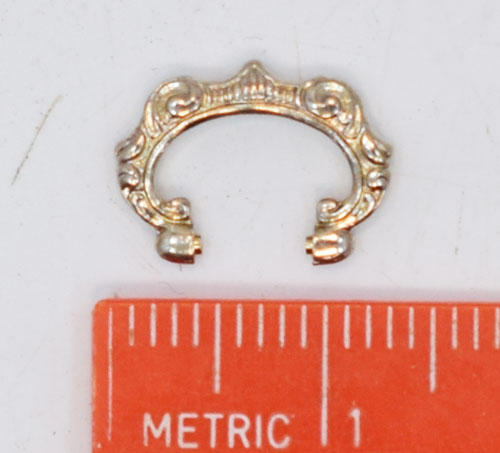

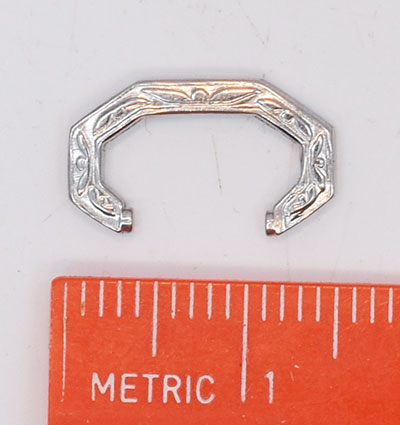

Case085 New-old-stock fancy white bow. Scale shown is millimeters. (1 available) $7.00 per bow
Case080 New-old-stock fancy yellow bow. Scale shown is millimeters. (1 available) $7.00 per bow
Case082 New-old-stock fancy yellow bow. Scale shown is millimeters. (1 available) $7.00 per bow
Case070 New-old-stock fancy oval white bow. Scale shown is millimeters. (1 available) $7.00 per bow

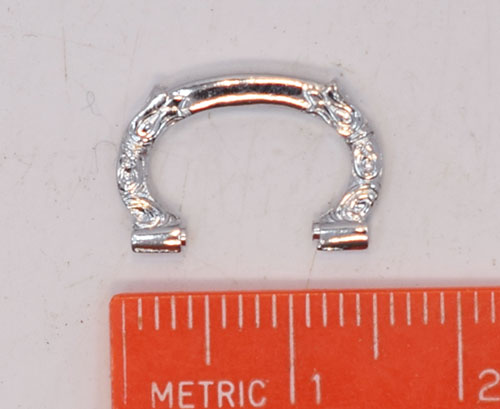

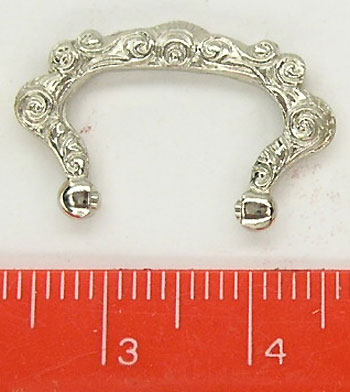

Case069 New-old-stock fancy white bow. Scale shown is millimeters. (3 available) $6.00 per bow
Case078 New-old-stock fancy gold plated bow. Scale shown is millimeters. (1 available) $6.00 per bow
Case089 New-old-stock white bow. Scale shown is millimeters. (3 available) $5.00 per bow
Case087 New-old-stock yellow bow. Scale shown is millimeters. (1 available) $5.00 per bow

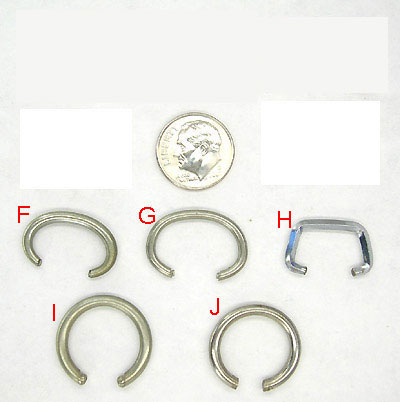

Case036 Large pocket watch bows. Specify letter when ordering. These are one-of-a-kind bows - so only one of each is available. $5.00 per bow

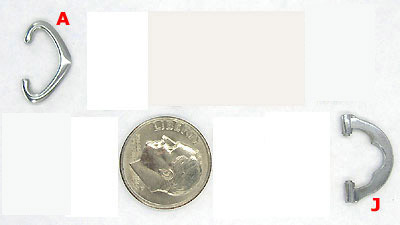

Case034 12-size pocket watch bows. Specify letter when ordering. These are one-of-a-kind bows - so only one of each is available. $5.00 per bow

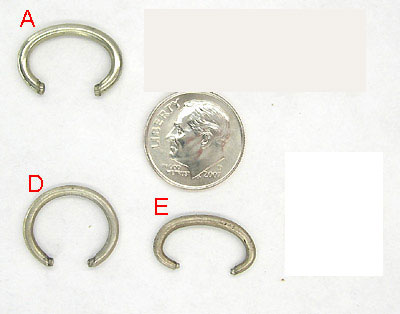

Case037 12-size pocket watch bows. Specify letter when ordering. These are one-of-a-kind bows - so only one of each is available. $5.00 per bow

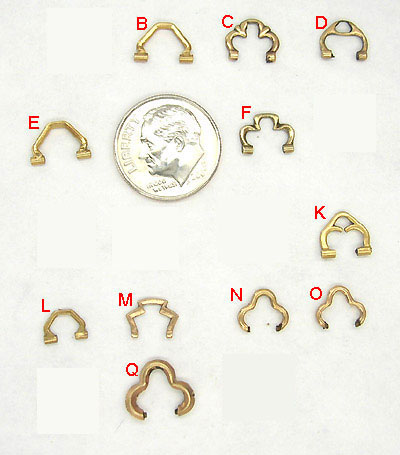

Case035 Ladies pocket watch bows. Specify letter when ordering. These are one-of-a-kind bows - so only one of each is available. $4.00 per bow
Case066 New-old-stock fancy gold plated bow. Scale shown is millimeters. (2 available) $5.00 per bow

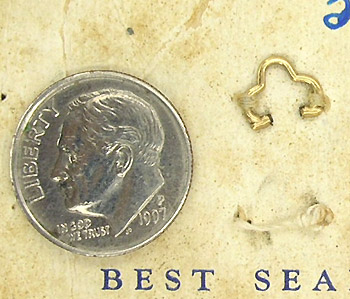

Case040 New-old-stock ladies pocket watch bows. Probably gold filled. (4 available) $4.00 per bow
